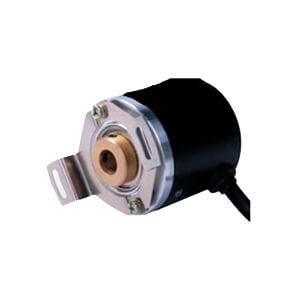

GH 38 for precision work environment. Products using through-hole design, diameter between 6mm-10mm. Resolution up to 5000 pulses, special requirements can be customized. Optoelectronic devices with high reliability, long life, anti-jamming capability, using a wide temperature range.
Products using through-hole design, diameter between 6mm-10mm.

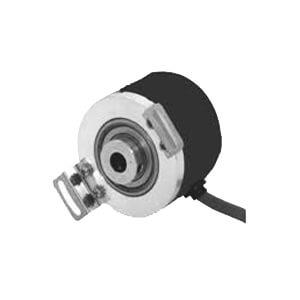

GH 60 is widely applied to kinds of machinery and photoelectric light industry control industry. Multiple output signals are available, resolution up to 6000ppr,others on request. Optoelectronic devices with high reliability, long life, strong anti-interference ability, wide range of operating temperature.
Products using through-hole design, diameter between 6mm-10mm.
GH 60 is widely applied to kinds of machinery and photoelectric light industry control industry. Multiple output signals are available, resolution up to 6000ppr,others on request. Optoelectronic devices with high reliability, long life, strong anti-interference ability, wide range of operating temperature.
Products using through-hole design, diameter between 6mm-10mm.
| ELECTRICAL SPACIFICATIONS | |||
| Output wave | Square Wave | ||
| Output Signals | Push pull (A,B,Z), Line Driver Output (A,-A, B,-B,Z,-Z Phase) | ||
| Current Consumptions | ≤ 180mA | ||
| Response Frequency | 0-120 KHz | ||
| Output Phase Difference | 90˚ ± 45˚ | ||
| Supply Voltage | 5 VDC, 5-12 VVDC, 12-24 VDC,10-30VDC | ||
| Signal Level | Vm≥ 85% Vcc, Vi≤ 0.3 V | ||
| No of pulses | 100, 300,500,512, 600,1000, 1024, 2000, 2500,3000,4096,10800 (Other number of pulses available on request) | ||
| Output circuit | Open collector NPN, pull-push, Line driver, voltage. | ||
| MECHANICAL SPACIFICATIONS | |||
| Speed without sealing | 4000 rmp. | ||
| Starting torque without sealing | ≤ 5.0x, 10-3 N-m (+25˚C) | ||
| Maximum load permitted on shaft | Radial 20 N, Axial 10 N | ||
| Shock resistance | 980m/s2,6ms,2times each on XYZ | ||
| Vibration proof | 50m/s2, 10-200 Hz, Two Hour each on XYZ | ||
| Working Life | MTBF≥50000h (+25C,2000rpm) | ||
| Weight | App. 370 gm(15 pin rectangle plug radial) | ||
| ENVIRONMENTAL SPACIFICATIONS | |||
| Working Humidity | 30-85%(No Condensation) | ||
| Storage Temperature | -30C- 85°C | ||
| Working Temperature | -10C-70°C | ||
| Protection Glass | IP50 | ||

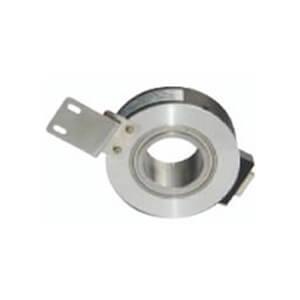

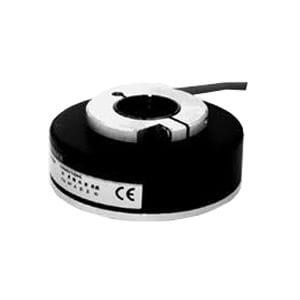

Hollow shaft encoder axis inside diameter Ø 25mm, (Ø 30mm, Ø 35mm, Ø 38mm , Ø 42mm , Ø 45mm, Ø50mm in order) Housing diameter Ø 90mm. Easy installation by means clamping Shaft &flex bracket flange stable output ragged and extremely thin hollow shaft encoder for extension of power motor
Power motor & 3phase current motor with frequency transformation system construction & elevators
| ELECTRICAL SPECIFICATIONS | ||
| Output wave | Square Wave | |
| Output Signals | Pullpush(A,B,Z)Line Driver( A,-A, B,-B,Z,-Z Phase) | |
| Current Consumptions | ≤ 180mA | |
| Response Frequency | 0-120 KHz | |
| Output Phase Difference | 90˚ ± 45˚ | |
| Supply Voltage | 5 DC, 5-12 DC, 12-24 DC. | |
| Signal Level | Vm≥ 85% Vcc, Vi≤ 0.3 V | |
| No of pulses | 512, 600,1000, 1024, 2000, 500,3600,3800,4096,5000, 7200,120、200、360、500、512、600 ,720、1000、 1024、1200、2048、 (Other number of pulses available on request) | |
| Output circuit | Open collector NPN, pull-push, line driver, voltage. | |
| MECHANICAL SPECIFICATIONS | ||
| Speed without sealing | 4000 rmp. | |
| Starting torque without sealing | ≤ 5.0x, 10-3 N-m (+25˚C) | |
| Maximum load permitted on shaft | Radial 20 N, Axial 10 N | |
| Shock resistance | 980m/s2,6ms,2times each on XYZ | |
| Vibration proof | 50m/s2, 10-200 Hz, Two Hour each on XYZ | |
| Working Life | MTBF≥50000h (+25C,2000rpm) | |
| Weight | App.460 gm(15 pin rectangle plug radial) | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Working Humidity | 30-85%(No Condensation) | |
| Storage Temperature | -30C- 85°C | |
| Working Temperature | -10C-70°C | |
| Protection Glass | IP50 | |
