Packings ideal for rotary pump applications
A solid plait packing specially finished yielding a soft readily comfortable material

Synthetic fibre braided packing having cross braided of abrasion resistant aramid staple fibre impregnated with PTFE and break-in lubricant

A special purpose packing with abrasion resistance, thermal stability, flexibility and good chemical resistance
Thorough impregnation of PTFE provides trouble free start-up and low friction operation
A high density packing good for crystallising media

Multi-yarn packing made from pure PTFE fibre corners with expanded PTFE graphite fibres at the running surface in interlock braid

The expanded PTFE graphited fibres yarns at the base provide excellent chemical resistance, low co-efficient of friction and virtually eliminate shaft scoring
The pure PTFE fibre yarns at the corners provide superb extrusion, abrasion and pressure resistance, allowing the packing to be used at very high pressure conditions

COPPER PACKING

Braided packing made from copper wire

Braided from soft annealed copper
Designed for use as a bull ring or anti-extrusion ring

Expanded PTFE graphited gland packing encapsulated over aramid fibre on each yarn

A true multi-service packing
Excellent chemical resistance, heat dissipating, sliding velocity, low co-efficient of friction properties of PTFE graphite and abrasion, pressure resistance and mechanical strength of aramid
Each expanded PTFE graphite yarn is encapsulated over aramid filament yarn
A soft supple packing, non-abrasive in nature and gentle on the shaft

A high grade high "tex" glass fibre braided packing impregnated with PTFE and high viscosity special grade lubricant

A universal packing made from high quality glass fibre yarn impregnated with PTFE and lubricant
Very low co-efficient of friction, high thermal conductivity and sliding velocity, runs almost frictionless without any shaft wear
Excellent resistance to chemicals and hardening thereof

A high grade unconventional braided packing made from acrylic fibre yarns with PTFE impregnation and break-in lubricant having copper wire on outer corners in interlock braid

Latest development for knife gate valve industry replacing conventional packing set of acrylic fibre or PTFE braided packing with copper wire braided anti-extrusion ring at top and bottom
The unique structure of the packing makes it ideal in terms of heavy duty corrosion and abrasion resistance for the toughest liquid slurry and dry material handling applications
Copper wire on the corners eliminates distortion under maximum differential pressure while an acrylic fibre PTFE impregnated face ensures tight sealing
Copper, being very soft and ductile, reduces wear and tear

Multi-yarn packing made from pure aramid fibres with corners of pure PTFE fibres at the running surface

The PTFE fibres yarns at the base provide excellent chemical resistance, low co-efficient of friction and virtually eliminate shaft scoring
The tough PTFE impregnated aramid fibre yarns at the corners provides superb extrusion, abrasion and pressure resistance, allowing the packing to be used at very high pressure conditions
Clean and non-toxic, can be used over a wide range of media including critical services that demand an extrusion resistant or reinforced packing

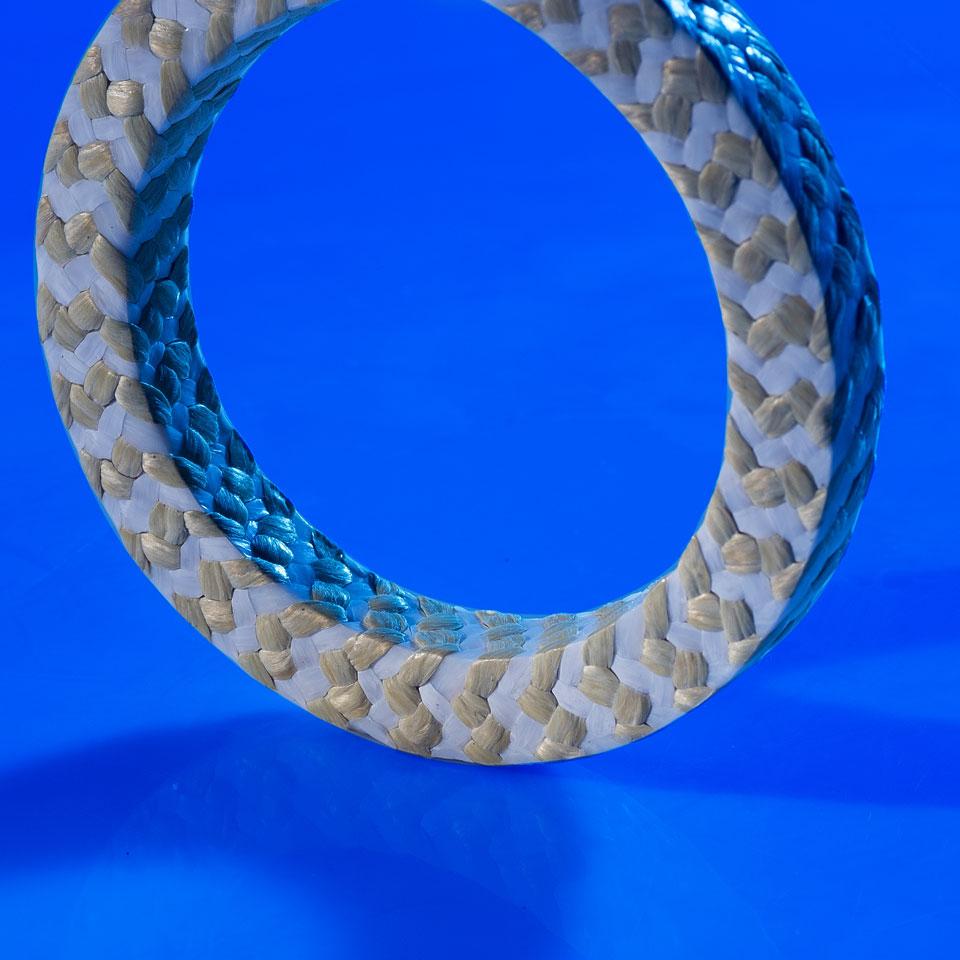

Cross braided packing made of pure PTFE yarn and aramid yarn

The PTFE fibres yarns provide excellent chemical resistance, low co-efficient of friction and virtually eliminate shaft scoring
The tough PTFE impregnated aramid fibre yarns are pressure resistance, allowing the packing to be used at very high speed with minimal shaft wear

A high grade cotton yarn packing impregnated with special lubricant

The packing is resilient and flexible
A low cost packing for rotary pump

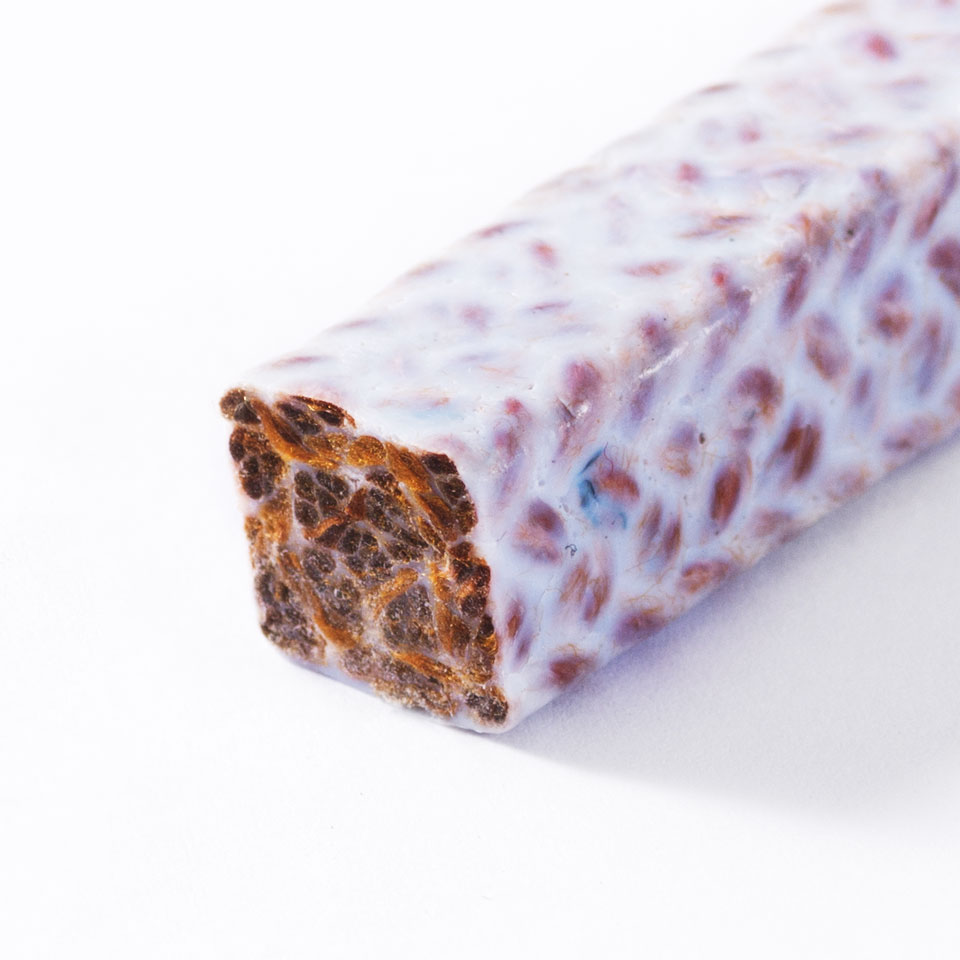

Novoloid fibre packing impregnated with PTFE and break-in lubricant in interlock braid

Pure novoloid fibres exhibit the strength of aramid and chemical resistance of PTFE/graphite
A multipurpose plant-wide packing for the pulp and paper industry
A thorough impregnation of PTFE provides low friction operations and a dense packing without any leak paths
A non-staining and non-abrasive packing—can be used for high speed applications

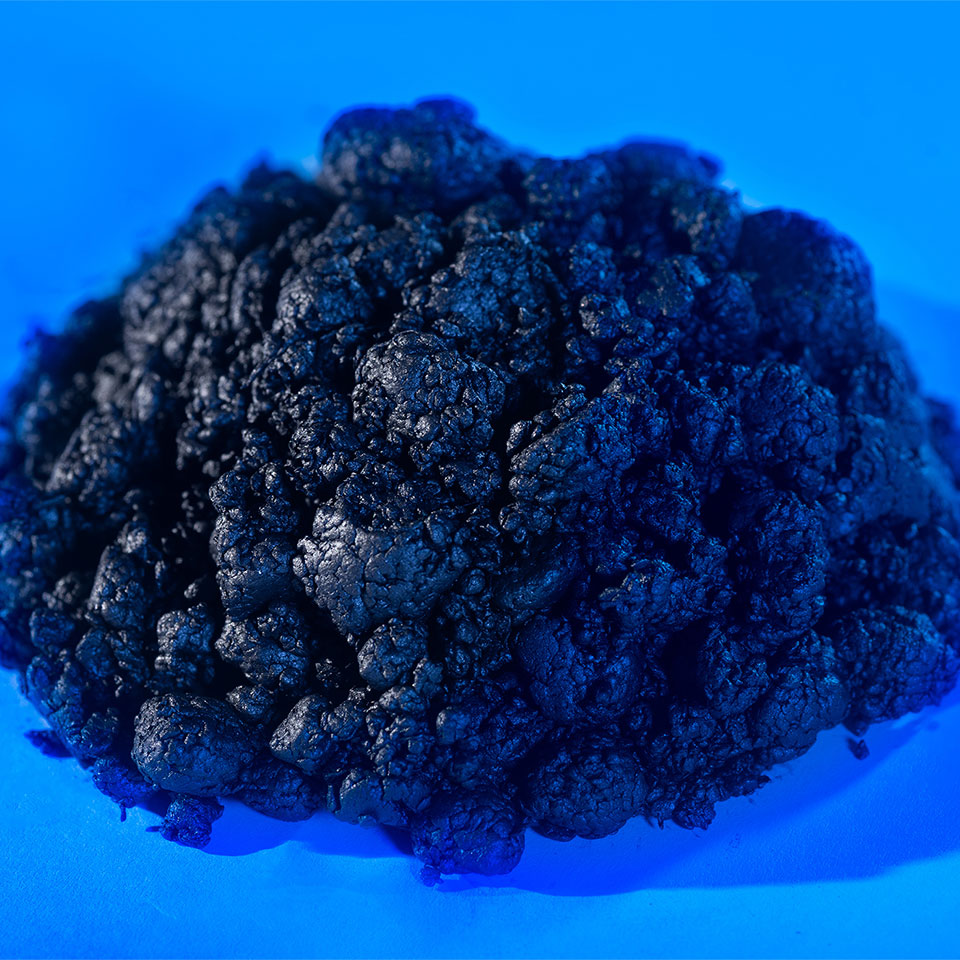

Insupac mouldable type packing for scored sleeves

Extremely flexible and malleable ‘mouldable’ type packing that can conform to any shape in the stuffing box, filling all deformities, irregularities and scorings and cutting out all leak paths
Excellent chemical resistance, non-scoring and anti-frictional properties—can be used over a wide range of applications
Manufactured from self-lubricating materials with excellent heat dissipation properties
Provides optimum sealing effect in conjunction with braided gland packings
Can be used over a wide range of cross-sections of the stuffing box, eliminating the need to stock various sizes

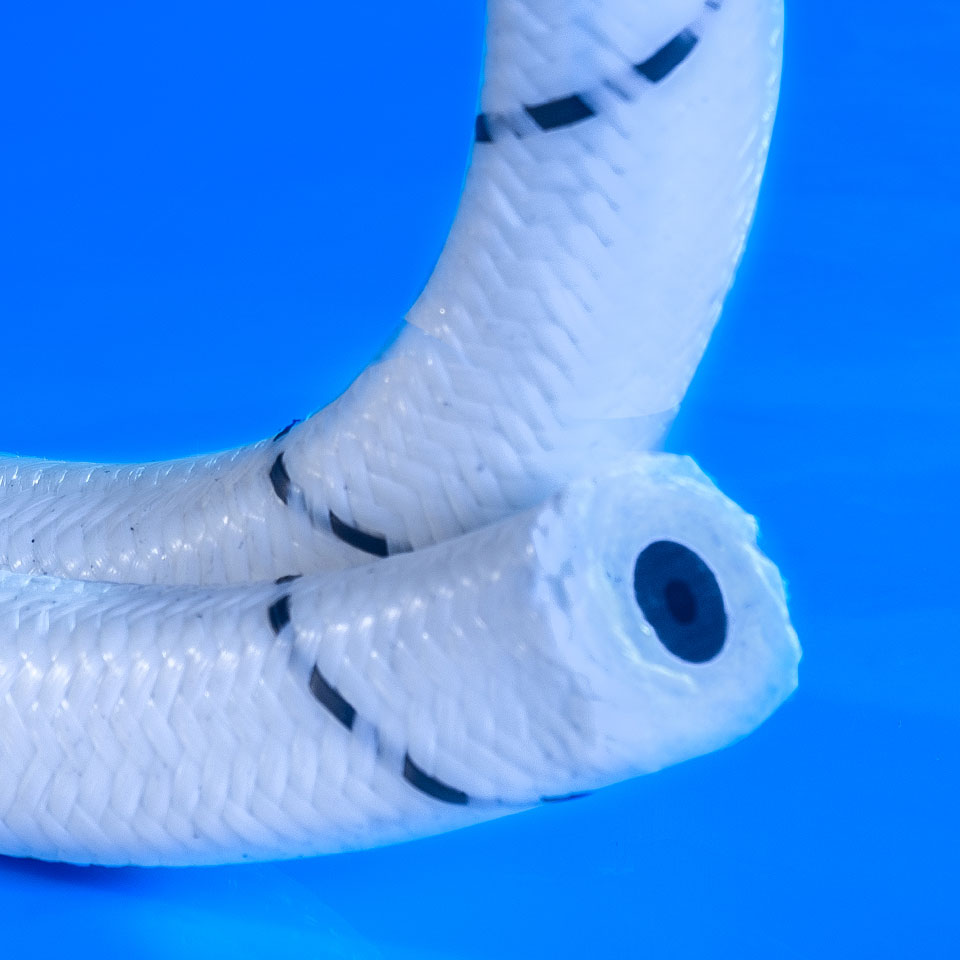

Sealing of tank lids, inspection and cleaning covers on tankers carrying all known bulk liquid

Made by spiral wrapping of PTFE tape over a core of elastomer, jacketed with inert polypropylene yarn
Braided structure is spirally wrapped to provide an impermeable barrier to liquids
Final jacketing of polypropylene yarn gives complete protection to the packing and makes it abrasion resistant
The unique core construction enables the packing to be stitched together to form an endless seal, thus preventing the chance of any leakage at the joint

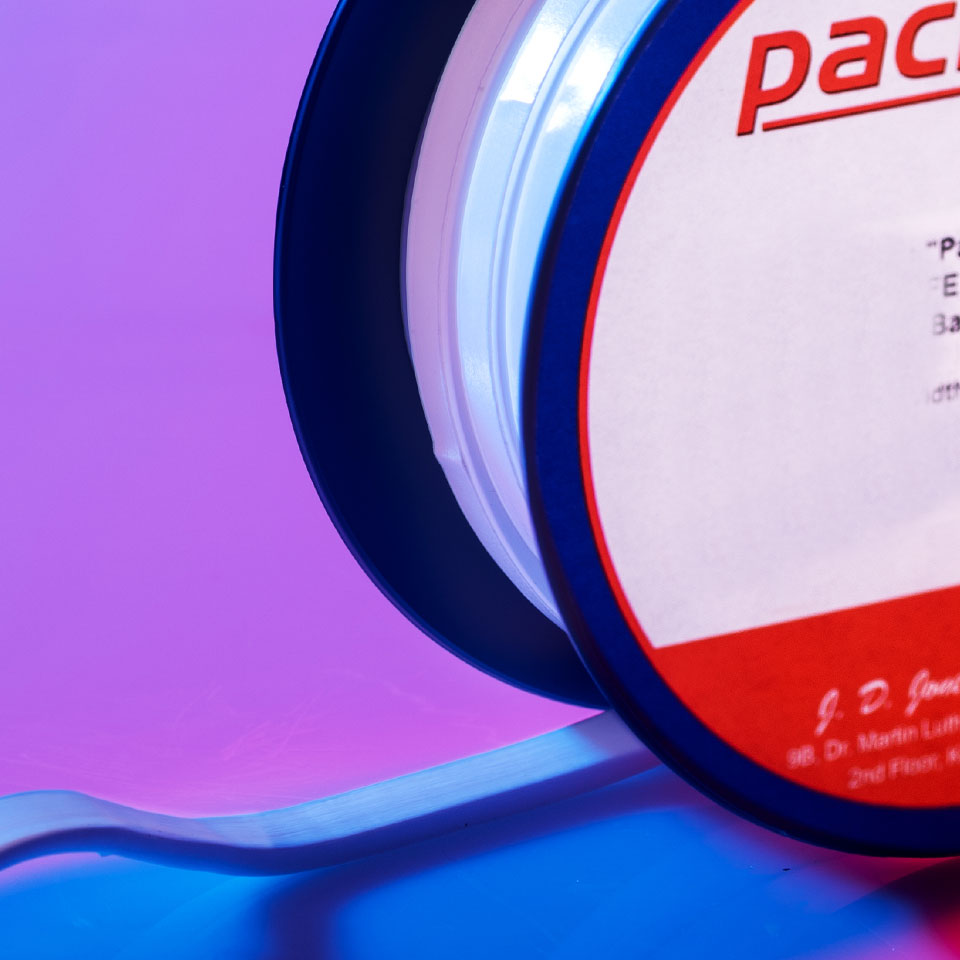

Expanded PTFE joint sealant tape with self-adhesive backing strip

A non-staining and non-contaminating sealant for use in pipe flange
A low friction sealant with excellent chemical resistance, even against strong acids and caustics
Wide application in refineries and other industries

Expanded PTFE sheet gasket

A non-staining and non-contaminating sealant for use in pipe flange
A low friction sealant with excellent chemical resistance, even against strong acids and caustics
Wide application in refineries and other industries

NA 620 Valve Stem Packing

All purpose, self forming PTFE valve stem packing

A non-staining and non-contaminating packing for use in valve stems
A low friction packing with a high degree of pliability enabling it to conform to valve stuffing box flaws and irregularities
Excellent chemical resistance even against strong acids and caustics

PTFE/PEEK/TFM/RTFE—filled grades of polymers

• Polymers from top international sources
• Compression moulding by state-of-the-art semi-automatic hydraulic press
• Sintering in fully automatic oven with preset temperature cycle option
• Machining by conventional turning machines or modern CNC machines
• Wire winding, spring loading option available in panel operated special purpose machine
• Special profile machining
• Annealing of part according to customers requirements/ application demands

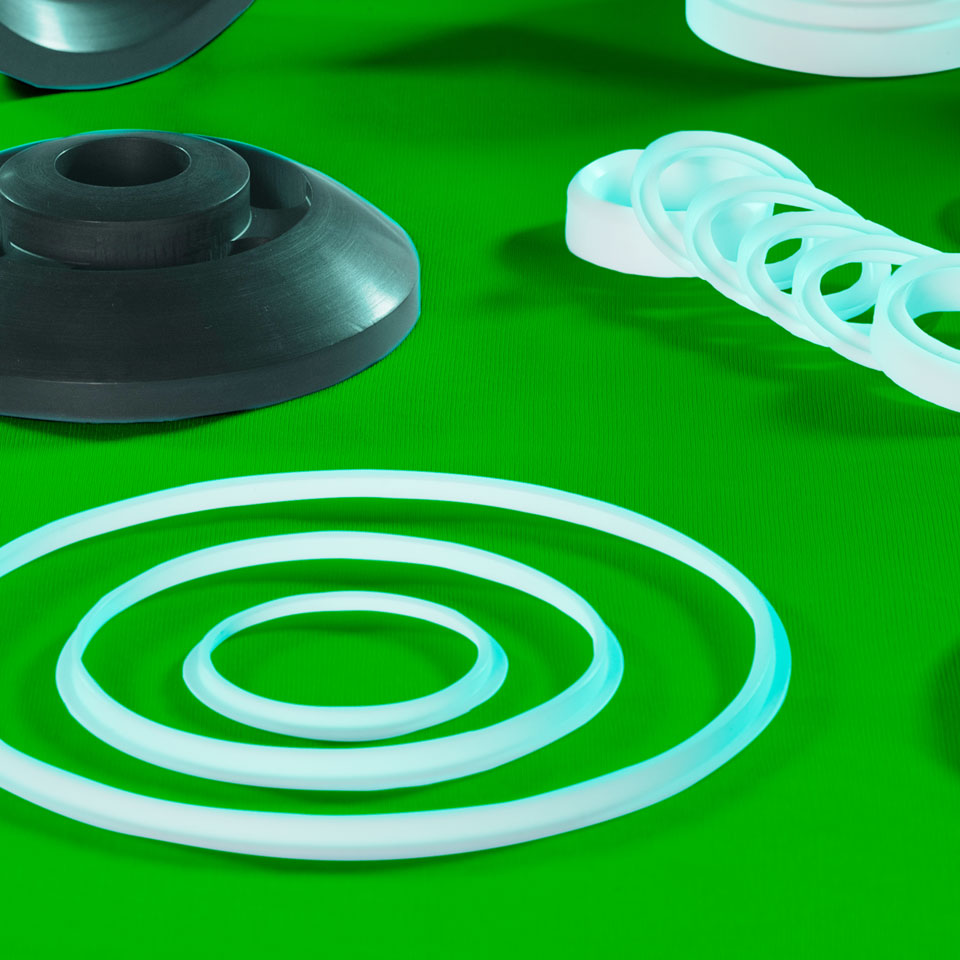

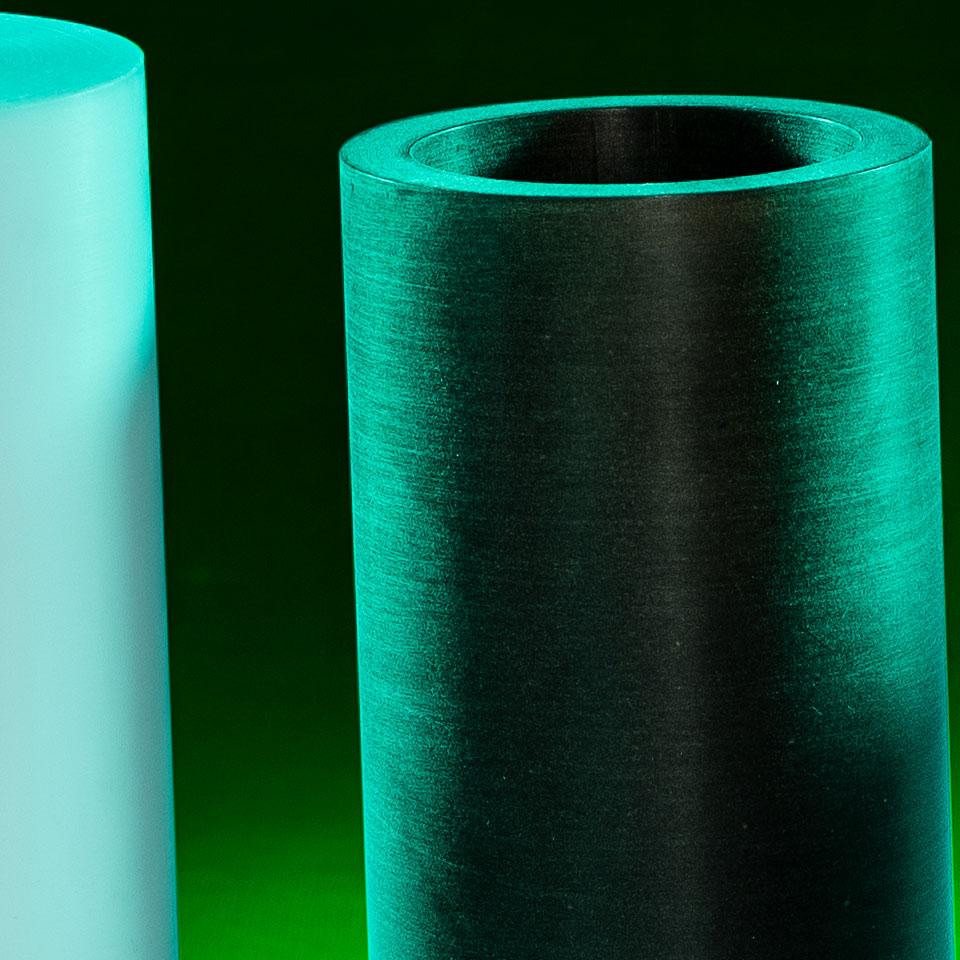

PTFE + RPTFE Rods/Bushes/Sheets/Machined Components

PTFE/PEEK/TFM/RTFE—filled grades of polymers

Moulded, sintered, precision machined parts available in Virgin as well as with fillers such as carbon, graphite, glass, mos2, bronze, special compositions

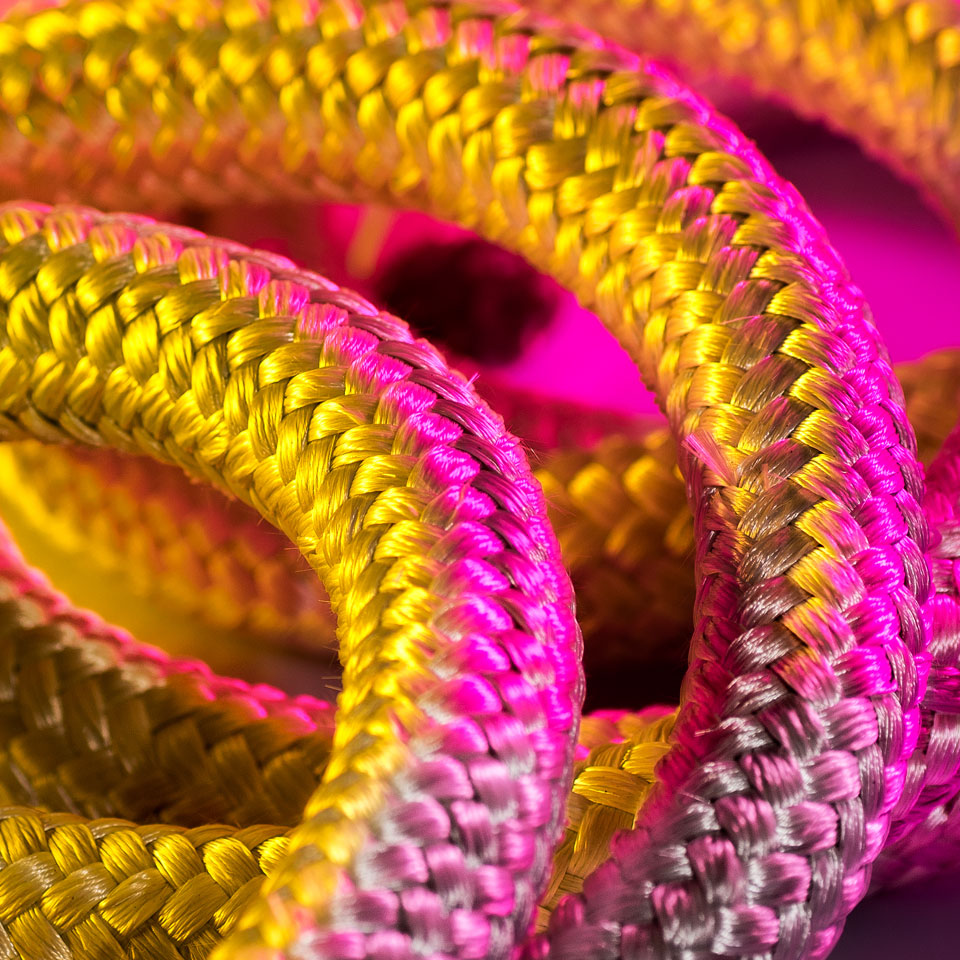

Glass fibre rope made from glass fibre yarn

Excellent insulation rope that offers good flexibility, dimensional stability and high tensile strength
Resistance to many acids and alkalis, most bleaches and solvents

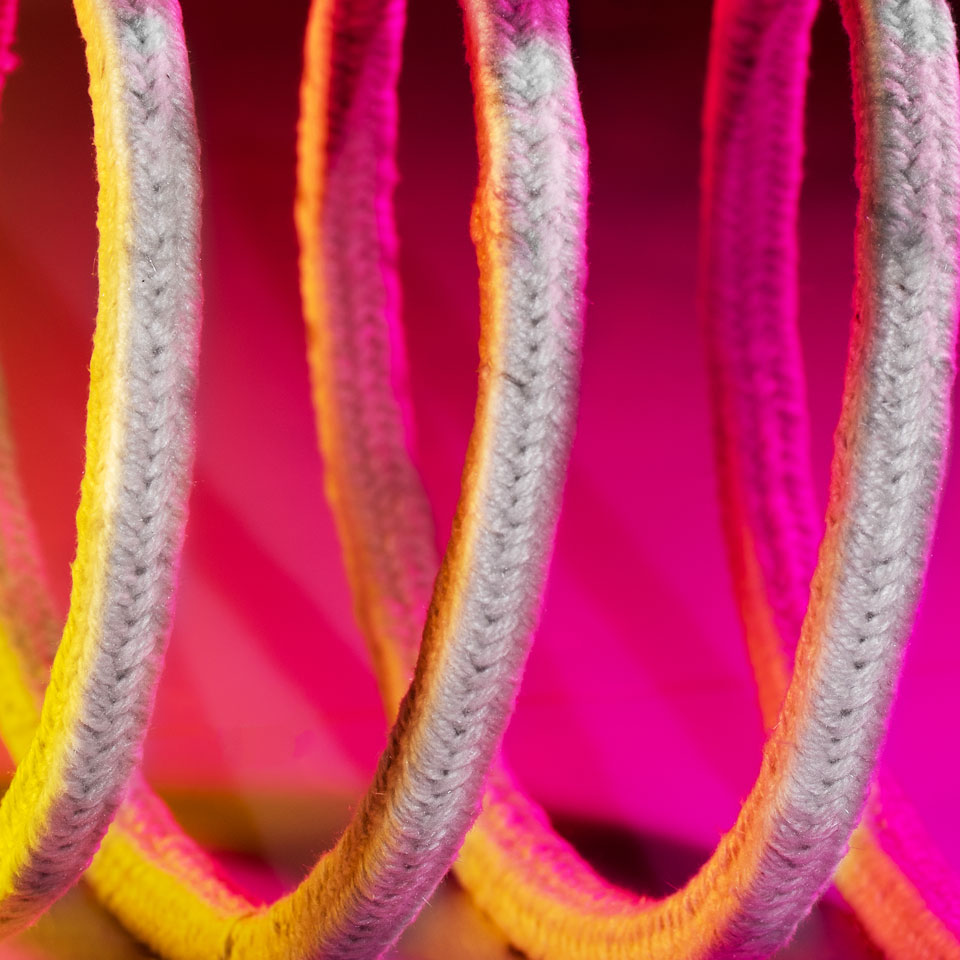

NA 550 Ceramic Rope

Ceramic fibre braided high temperature insulation rope reinforced with e-glass fibre

The best choice for thermal insulation
Withstands up to 1,260°C
Much better substitute for conventional asbestos ropes, which are not meant for use over 450°C
Manifold service life in comparison to the life than asbestos ropes
Very low loss upon ignition
Saves energy loss, reduces downtimes

NA 551

Ceramic fibre braided high temperature insulation rope with a core of high grade silica fibre

The best choice for thermal insulation
Withstands up to 1260°C
Much better substitute of conventional asbestos rope which is not meant for use over 450°C
Manifold service life in comparison to asbestos rope
Very low loss upon ignition
Saves energy loss, reduces downtimes

Description / Specification of Graphite Bush With S.S. Eyelet

We are involved in offering a wide range of Graphite Bush With S.S. Eyelet to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Graphite Bush With S.S. Eyelet. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Flexible Graphite Ring Set

We are involved in offering a wide range of Flexible Graphite Ring Set to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Flexible Graphite Ring Set. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Special combination gland packing manufactured from 4 numbers expanded pure graphite yarn braided packing ring and 5 number separators of flexible pure graphite gasket.

Manufactured specifically for Bowl Mill Worm Shaft
It is incorporated with a sacrificial metal corossion inhibitor to protect the shaft from galvanic corrosion
