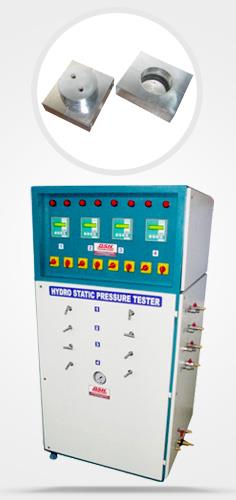

Machine having different models with different pressure capacity.
All the models are work as short term as well as long term.
DSH having a Digital model and Analogue models.
All our models are air less systems; no pneumatic pumps are used for pressure development.
Pressure range up to 50bars, 100bars and 200bars. (as per customer's requirements) Our pressure tester having single station, three stations and up to eight stations.
Machine suitable as per IS:4984, ASTM D-1238, ISO or other equivalent standard.
Machine having a temperature controller and timer facility.
Machine supplied with standard tool kit and test required loads.
Additional loads are also providing as per customer's request.
Machine having maximum temperature range up to 400°c.
Temperature accuracy ±0.5°c or better.
Highly polished barrel, die and other accessories for better accuracy and performance.
Power supply: single phase with earth, table top model
Note: customer required 0.1mg accuracy weighing balance at your end
The instrument is made accordance with IS 2530,BS 2782 Part – 8, ASTM 3015.
This instrument is used to find out uniform dispersion of Carbon Black in PE Products.
Projection screen Diameter. 4 or 6”.
Magnifications 100 X, 200 X is available with instrument.
Thermostatically operated Hot Plate is also provided with the instrument.
Power supply: single phase with earth
CCD camera unit with software facility also available on demand.
Machine design and develop as per ASTM 1693.
Equipment comes with digitally controller water bath with circulating facility.
Bath temperature is up to 100°c with 0.1°c L.c.
With PID based digital control with in built timer facility to count the time.
Stirring facility is inbuilt for uniform temperature.
Machine comes with all required accessories.
Accessories: Specimen holder / Bending clamp / Transfer tool / Blanking die Nicking die / Glass test tubes / Egypol solution – 500ml approx
Water bath is suitable for condition purpose during pressurized condition Construction of bath inside stainless steel and outside mild steel.
Bath having a facility for uniform temperature and circulation.
Bath sizes are changeble as per customer's requirements or as per customer's finished goods material i.e pipes.
Digital temperature is fitted on to the machine.
All electrical panels are ISI mark and major components compliance with CE certifications.
DSH's specially designed heaters are used, heaters design and construction according to the bath size
Baths are design as per HOT WATER, COLD WATER, HOT& COLD WATER conditioning.
Machine is suitable for making dumbbell samples of tensile testing.
High speed anvil cutter is fitted for finishing of the samples
Vacuum system is incorporated for dust free environment.
All size of templates is available for the sample preparation.
Maximum 25mm thickness sample or higher thickness samples also possible on request.
