Since 1985 OSCARMAX manufacturing EDMs & Drill EDMs with advance technology to fulfil the market wishes. OSCARMAX EDMs & Drill EDMs have won the trust of the domestic and overseas customers by performance, consistency, high-quality and machining precision.

ZNC EDMs

Features: *32 bits industrial grade computer. *Low electrode wear, high efficiency, and extremely fine machining surface. *X, Y-axis high precision ball screws. *Multi cavities machining, auto center, edge finder, Employs 32 bits industrial grade computer for maximum stability, fast execution, and great memory capacity. Automatic traverse and positioning function for three axes.

The Key Technical Features: * Table: 600 x 300 ~ 3100 x 1100 * Travel: 300 x 250 x 150 ~ 2550 x 1000 x 600 *Generator: 30A ~ 180A

CNC EDMs

Features: *2.5D machining available *Multi cavities machining *Circle orbiting *Square orbiting XY, XZ, YZ *Orbiting plane changeable Employs 32 bits industrial grade computer for maximum stability *Fast execution, and great memory capacity. *Employs advanced window display for convenient operation.

The Key Technical Features: *Table: 650 x 350 ~ 3100 x 1100 *Travel: 300 x 250 x 300 ~ 2550 x 1000 x 600 *Generator: 30A ~ 180A

Drill EDMs

Features: *“FUZZY” system & simply input the machining current then all other machining parameters will be set automatically. *Automatic tool changer (option) & intelligent tool compensation. Dialogue programming, DXF file reader, RS-232 function, easy NC file reader, precision blind-hole machining.

The Key Technical Features: *Table: 460 x 210 ~ 1100 x 600 *Travel: 300 x 200 ~ 750 x 500 *Spindle Servo Travel: 30A ~ 180A

QUICK JET has expertise in Mould / Die Milling Machines. High Performance Milling + High Speed Cutting machines are best and advanced milling machines. Advance technology used for mould / Die industries. CNC Milling machines have high quality, precision and stability standard.  High Performance Milling + High Speed Cutting machines gives fully satisfaction to mould machining equipment.

The key Technical Features: *X,Y,Z-axis travel: 900/600/500mm    *Built-in spindle: 24000rpm *Spindle Nose Taper: HSK-A63 *Max. Table load: Unrestricted *Cutting Feedrate: 1 ~ 20,000mm/min *Automatic Tool Changer: 20 Tools *Machine Dimensions: 3010 x 3315 x 3100mm *Machine Weight: 11000kgs

Since 25 years PRECIWIRE CNC Wire Cut EDM Machine is well-liked for its Rigidity, Ruggedness & Reliability. PRECIWIRE CNC Wire Cut EDM Machine is popular brand for its persistent accuracies and low maintenance. More than 25000 users in India and abroad are getting benefits from our machines.

Features: *Automatic Parameter Generating System. *Auto Wire Tension System.    *"C" Structure HTK Casting Machine Body From Japan. *Waterproof Copper Pulley       *Z-Axis Motorized. *Multipass Cutting for 200mm Thickness With Good Surface Finishing ( FR series )

The key Technical Features: *Table Travel Size X x Y (mm): 380x525 ~ 720x1040 * Max. Cutting Thickness (mm):250 ~ 300 *Max. Taper angle/plate thickness(Degree): +/- 3degree/80 ~ +/-6degree/80

PRODUCER Hot Chamber Zinc Die Casting Machine is complete solution in the field of Zinc Die Casting. The Hot Chamber Zinc Die Casting machine is Tough and Rugged machine, High production with advance feature which control the quality of castings produced. It is a user friendly machine. Its configuration makes it convenient to operate and control the machine.

The key Technical Features:
*Clamping Force ( Ton) From 30 ~ 515
*Distance Between Tie Bars(HxV)(mm) From 280x280 ~  695x695
*Tie Bar Diameter(mm) From 50x6 ~ 135x6
*Die platen size ( H x V )(mm)From 460x480 ~ 1070x1070

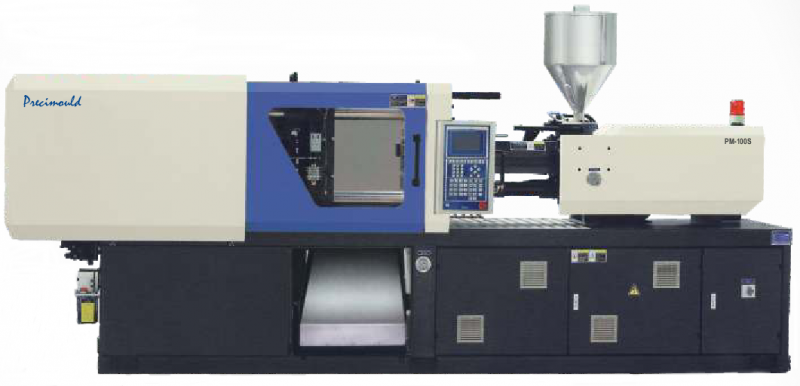

Since 25 years PRECIMOULD Plastic Injection Moulding Machine is well-accepted for its Higher Precision, Higher Dynamics & Excellent Efficiency. PRECIMOULD is popular brand for its persistent accuracies and low maintenance. More than 25000 users in India and abroad are getting benefits from our machines.

Features: *Better Precision *Faster Speed *Higher Productivity *Long lasting
*Efficient operation *Qualified materials

The key Technical Features: *Shot Weight gms: 50 ~ 32986 *Clamping Force Kn: 500 ~ 25000 *Space Between Tie bar mm x mm: 265x265 ~ 1850x1700
