Flanges as per ASME (formerly ANSI) B 16.1 Class 125
Modular construction, high interchangeability, fast delivery
Versatile shaft sealing arrangement, Gland packing as a standard arrangement and option to use mechanical



OPERATING DATA


Design : Horizontal back pull-out
Pump size : DN 32 to 150 mm
Capacity : up to 540 m3/hr
Head : up to 100 m
Discharge pr. : up to 16 bar
Temperature : -30°C to +160°C
Material : C. I., C. I. with Bronze internals,C.I. with S. S. internals

Versatile due to broad range of materials
Constant-level oiler
Maintenance-friendly
Long service life
Low operating costs



OPERATING DATA


Design : End suction process pump
Pump size : DN 32 to 250 mm
Capacity : up to 1200 m3/hr
Head : up to 150 m
Discharge Pr. : up to 25 bar
Temperature : -70°C to +320°C
Material : C. I., S. S., C. S., Cr. S.


APPLICATION



Paper industry
Organic/inorganic fluids
Handling of sea water
Sugar industry
Food processing industry
Petrochemical industry
Chemical industry

FEATURE

Normal design for temperature up to 110°C
Hot water design for temperature from 110°C to 140°C
Nozzles can be turned by 90° for easy installations
Various combination of impellers for wide performance



OPERATING DATA


Design : Multi-stage high pressure pump
Pump size : DN 32 mm
Capacity : up to 18 m3/hr
Head : up to 368 m
Discharge Pr. : up to 40 bar
Temperature : -10°C to 140°C
Material : Cast Iron, C. I. with Bronze internals

FEATURE

Flanges to DIN 2535/16, 2532/10
Interchangeable wear plate in various materials
Two type of impellers for vide range of applications
Axially adjusted bearing bracket with option of heavy
bearing bracket



OPERATING DATA


Design : End suction non-clog pump
Pump size : DN 65 to 200 mm
Capacity : up to 700 m3/hr
Head : up to 100 m
Discharge Pr. : up to 10 bar
Temperature : -30°C to +250°C
Material : C. I. with C.S. internals, C. S.

FEATURE

Flanges to DIN standard
Normal design for temperature up to 105°C
For temperature above 105°C; Hot Water Design with cooled stuffing box is available
Axial thrust is balanced by balancing holes on impeller shroud or the balancing and counter balancing disc



OPERATING DATA


Design : Multi-stage high pressure pump
Pump size : DN 40 to 150 mm
Capacity : up to 630 m3/hr
Head : up to 780 m
Discharge Pr. : up to 63 bar
Temperature : -10°C to 230°C
Material : C. I., C. I. with Bronze internals C. S., CA6NM

OPERATING DATA


Pump size : DN 400 mm
Capacity : up to 27 m3/hr
Head : up to 265 m
Discharge pr. : up to 28 bar
Temperature : up to 140°C
speed : up to 2900 rpm


APPLICATION



Water works
Irrigation
Sprinkler installations
Boiler-feed application
Fire fighting

Centrifugal ring section, multi-stage pump in modular design for handling pure and slightly aggressive media.

Suitable for water works, irrigation and boiler feed applications.



OPERATING DATA


Pump size : DN 32 to 150 mm
Capacity : up to 850 m3/hr
Head : up to 630 m
Discharge pr. : up to 63 bar
Temperature : -10°C to +200°C
Speed : up to 4000 rpm

LV JOINTS

Low-Voltage Joints
Raychem products offer excellent insulating and sealing performance with heat-shrinkable, gel and resin materials. These proven materials form the basis of straight and branch joints for voltages up to 1kV.

• Heat-shrink, resin, gel technologies
• Environmentally friendly sealants
• Quick and easy installation
• Re-instatement and energisation immediately after installation
• Solutions for all cable constructions
• Low-voltage joints for safety class cable

Medium-Voltage Joints
Millions of medium voltage joints have been installed on paper and polymeric cables worldwide, in the most severe service conditions, and under high electrical, thermal, mechanical and environmental stress. The reliability of the technologies is proven.

• Heat-shrink and cold-applied technologies
• Prefabricated components
• Quick and easy installation
• Easy and highly reliable installation
• Applicability to different conductor and connecting techniques
• Accommodation of tolerances, range-taking
• Suitable for different conductor cross sections and cable constructions
• Solutions for all cable constructions

Description / Specification of High Pressure Pump

We are involved in offering a wide range of High Pressure Pump to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  High Pressure Pump. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

OPERATING DATA


Design : Multi-stage high pressure pump
Pump size : DN 32 mm
Capacity : up to 18 m3/hr
Head : up to 368 m
Discharge Pr. : up to 40 bar
Temperature : -10°C to 140°C
Material : Cast Iron, C. I. with Bronze internals

Description / Specification of Oil Cooled Transormers

We are involved in offering a wide range of Oil Cooled Transormers to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Oil Cooled Transormers. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Cast Resin Dry Type Power And Distribution Transformers

We are involved in offering a wide range of Cast Resin Dry Type Power And Distribution Transformers to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Cast Resin Dry Type Power And Distribution Transformers. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

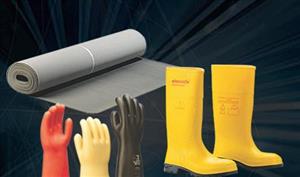

High voltage insulating rubber mats conforms to IEC 61111:2002 and are manufactured using high quality elastomer rubber in order to provide complete protection against electric shock due to electrical earth faults. These rubber matts are suitable for use in outdoor and indoor applications and are generally placed in front of electrical panels and switchgears in orders to create a safe working environment for the operators.
Advantage
• Slip resistant
• Not affected by ofacid or oil.
• Hydrophobic in nature.
• Fire resistant.
• Halogenfree flame retardant.
• Mats available for 415V to 66kV voltage applications.
• Higher breakdown voltage in lesser thickness.
• Thickness variation from 2-7 mm as per voltage applications.
• Continuous rolls of 10m in lengths.

Gloves provide complete hand protection from electrical shock during electrical operations.

Advantage
Elecsafe electrical insulating rubber gloves are made with highest quality rubber which gives unique benefits like :
• Tensile Strength > 16MPa - Gives higher operating life.
• Average elongation at break > 600% - flexibility for different hand sizes.
• Puncture resistance 2 18N/mm - Gives higher puncture resistance.
• Tension set < 15 % - Non deforming

Types : Gloves as per IS-477 / IEC-60903 : 2002-0, Leather Over Gloves, Cotton Liner Gloves
Applications : Distribution & Utilities, Railways, Oil & Gas, Heavy Engineering etc.

Dielectric shoes are completely electrically insulated footwear designed to give added protection who are at risk due to electrical shocks during operations.

Advantage
• It is made with epoxy coated steel toe which can withstand 200 joules.
• Specially designed rubber cleated out sole for maximum grip & slip resistance.
• Oil Resistant vulcanized rubber sole for maximum grip, minimum wear & improved cut resistance.
• Heat resistant upto 300deg Celsius for 30 sec.
• Complete boot tested at 20kV, 3 mins and 10 kV for 8 hours.
• Sole tested for 35 kV upto 3 minutes.
• Shelf life - more than 10 years.
• 100% waterproof
• Washable knitted nylon seamless Lining & Moisture absorbing, machine washable insole.
