Shaft Type Encoders M. S. 25
- Resolution : 20, 36, 60, 100, 200, 300, 360, 400, 500, 600, 800, 1000, 1024, 1200
- Output : Voltage Output, Open Collector
- Mounting : Servo
- Supply Voltage : 5 Vdc, 5-30Vdc
- Channel : A, B, Z
- OD : 25 mm
- PCD : 18 mm
- Shaft Dia. : 4 mm
- Protection Class : IP54 / IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : : The rotation angle and rotation speed measuring application, Robotics, DRO Systems, UniversalTesting Machines, Small size, light weight, excellent performance, suitable for small space. Compact size
Shaft Type Encoders M. S. 30
- Resolution : 20, 36, 60, 100, 200, 300, 360, 400, 500, 600, 800, 1000, 1024, 1200
- Output : Voltage Output, Open Collector
- Mounting : Servo
- Supply Voltage : 5 Vdc, 5-30Vdc
- Channel : A, B, Z
- OD : 30 mm
- PCD : 18 mm
- Shaft Dia. : 4 mm
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : The rotation angle and rotation speed measuring application, Robotics, DRO Systems, UniversalTesting Machines, Small size, light weight, excellent performance, suitable for small space.Compact size
Shaft Type Encoders M. S. 38
- Resolution : 30, 60, 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1024, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000
- Output : Push-Pull, Line Drive, Totem pole, Voltage Output, Open Collector
- Mounting : Servo
- Supply Voltage : 5 Vdc, 5-30Vdc
- Channel : A, B, Z
- OD : 38 mm
- PCD : 28 mm & 30 mm
- Shaft Dia. : 6 mm
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : The rotation angle and rotation speed measuring application , Robotics & machine tool application,Printing & Packaging, DRO Systems, UniversalTesting Machines, CNC/VMC/VTL Machines, Material Handling Equipments, Textile Machines
Shaft Type Encoders M. S. 50
- Resolution : 100, 120, 127, 128, 150, 200, 250, 256. 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000, 6000
- Output : Push Pull, Line Drive, Totem pole, Voltage output Open Collector
- Mounting : Servo
- Supply Vold : 5 Vdc, 5-30Vdc
- Channel : A, B, Z, /A,/B,/Z
- OD : 50 mm
- PCD : 40 mm
- Shaft Dia. : 8 mm
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : Speed Measuring Application, Plastic Processing Machines, Injection Moulding Machines, Machine Tool Application, Printing & Packaging, Material Handling Equipments
Shaft Type Encoders M. S. 586
- Resolution :100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500. 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000, 6000
- Output : Push Pull, Line Drive, HTL, Voltage Output, Open Collector
- Mounting : Servo
- Flange type : Synchro Flange Type
- Supply Vold : 5 Vdc, 5-26Vdc
- Channel : A, B, Z, /A,/B,/Z
- OD : 58 mm
- PCD : 42 mm
- Shaft Dia. : 6 mm
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : Machine Tool Application, Speed Measuring Application, Injection Moulding Machines, Printing & Packaging, Material Handling Equipments, Textile Machines
Shaft Type Encoders M. S. 5810
- Resolution : 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000, 6000
- Output : Push Pull, Line Drive, HTL, Voltage Output, Open Collector
- Mounting : Servo
- Flange Type : Clamping Flange type, Squre Flang Type
- Supply Vold : 5 Vdc, 5-26Vdc
- Channel : A, B, Z, /A,/B,/Z
- OD : 58 mm
- PCD : 48 mm
- Shaft Dia. : 10 mm
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : Heavy Duty Machine Tool Application, Speed Measuring Application, Injection Moulding Machines, Printing & Packaging, Material Handling Equipments, Textile Machines
Shaft Type Encoders M. S. 5815
- Resolution : 100, 120, 127, 128, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 640, 720, 800, 900, 960, 1000, 1200, 1250, 1440, 1500, 1600, 1800, 2000, 2048, 2500, 2540, 2560, 3000, 3600, 4000, 5000, 6000
- Output : Push Pull, Line Drive, HTL, Voltage Output, Open Collector
- Mounting : Servo
- Flange type : Squre Flang Type
- Supply Vold : 5 Vdc, 5-26Vdc
- Channel : A, B, Z, /A,/B,/Z
- OD : 68 mm X 68 mm squre flange
- PCD : 56 mm
- Shaft Dia. : 15 mm ( with Keyway type)
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : Heavy Duty Machine Tool Application, Speed Measuring Application, Printing & Packaging, Material Handling Equipments, Textile Machines

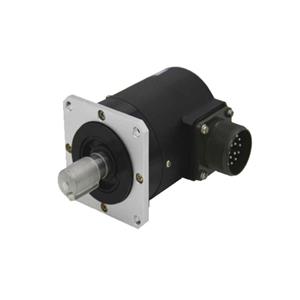

Shaft Type Encoders M. S. 6815
- Resolution : 10, 60, 100, 120, 200, 250, 300, 360, 400, 500, 600, 720, 800, 900, 960, 1000, 1024, 1200, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 5400
- Output : Push Pull, Line Drive, HTL, Voltage Output, Open Collector
- Mounting : Servo
- Flange type : Squre Flang Type
- Supply Vold : 5 Vdc, 5-26Vdc
- Channel : A, B, Z, /A,/B,/Z
- OD : 68 mm X 68 mm squre flange
- PCD : 56 mm
- Shaft Dia. : 15 mm ( with Keyway type)
- Connection : 17 PIN /19PIN Male Connector
- Protection Class : IP54/ IP65
- RPM : 6000 RPM MAX*
- Frequency Response : ≤300kHz
- Application : Heavy Duty Machine Tool Application, Speed Measuring Application, Printing & Packaging, Material Handling Equipments, Textile Machines
