Allows Gland Pocking leakage to be flushed away from the pump preventing severe damage to seals and packing.
Permits controlled leakage of process or flush fluid to reduce friction and dissipate heat.
Inlet and outlet connections for flushing leakage away to drain
Ideal for waste water treatment.sugar, petrochemical and paper industry applications.
Available with flanged and wide throat version with or without shaft sleeves.
Sailent features of Hydro Prokav KM 2000 progressive cavity pump
slow total cost of ownership
Positive displacement
non-pulsating flow
Accurate, repeatable flow
Head independent of pump speed
Low NPSH Requirement
Self-priming
High suction lift upto 28 feet
low shear
particles upto 2.8 ” in diameter
Reversible
Viscosities up to 1,000,000 cps
No valves to clag, Stick or Vapor lock
No timing gear adjustments.
High Valumetrics and mechnical efficiency
Smooth fluid discharge
no vibration
Easy to maintain
Wide temperature range to 400 Deg F
Ideal for metering applications
Easy to regulate
Superior abrasion resistance
Features and Benefits
Cost-effective open pin joint design
low total cost ownership
Non-pulsating metered flow for accurate process control
Long life even handling abrasive fluids
Vibration-free for quiet operation
Compression fit between rotor and stator for high volumemetric and mechanical efficiency
Easy,on-suit maintenance
Fluid temperature range to 350 Deg F/175 Deg C
Steady flow under wide NPSH variations
Handle solids upto 1 diameter
Reversible rotation
High Suction lift to 28′
No pistons, Values are timing gear to wear out or gum up
Self-priming to prevent Vapour or air lock
Low Shear pumping
Viscosities over 1,000,000 cps
These pumps are made out of Cast steel,CF8M, CF8 and special material like DSS, Alloy20 etc. Pump Housing and Cast Iron Bearing Housing. Rotors of Hard Chrome Plated Alloy steel , Tool steel , SS 304, SS 316 and the rotating part are of Alloy Steel or Stainless Steel. These pumps are with rugged gear-type universal joint which is the effective solution to handle heavy radical thrust loads. This design ensures best performance with very minimal maintenance, low wear & Tear rotating parts and longer life of pump.
These pumps are made out of SS 304,SS 316 or special Alloys like Alloy 20, Hastalloy. Rotors of Hard Chrome Plated, SS 304, SS 316 and the rotating part are of Stainless Steel. The universal joints are specialy designed single or double knuckle joints. The Rubber Stator is made out of Natural or Synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon, Neoprene, Viton, Butyle or Hi –Nitrile based on application.
Maximum Capacity – 550 Cu M/hr
Maximum Pressure – 48 Kg/cm2
Operating temperature – 200 ° C
Maximum Solid size – 50 mm
Viscocity – 50,00,000 CST
These pumps are compact pumps close coupled pumps with pump housing made out of cast iron, SS 304,SS 316 or special Alloys like Alloy 20, Hastalloy. Rotors, Hard Chrome Plated alloy steel,Tool Steel,SS 304, SS 316 and the rotating part are of Stainless Steel. The universal joints are specialy designed single or double knuckle joints. The Rubber Stator is made out of Natural or Synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon, Neoprene, Viton, Butyle or Hi –Nitrile based on application.
KYV Series pumps are vertical pumps for close or open grain application in petro chemical industries. The distance between pump suction and mounting chamber can be varied based on site requirement. Special designs available confirming to API 676.
Maximum Capacity – 550 Cu M/hr
Maximum Pressure – 24 Kg/cm2
Operating temperature – 200 ° C
Maximum Solid size – 50 mm
Viscocity – 50,00,000 CST

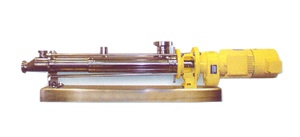

Hygienic design pump with all metal parts in contact with liquid in smooth SS and stator of non-contamination rubber, seamless body eliminating product retaining pockets. Shaft sealing by food grade gland packing / mechanical seal. IDF / SMS /TRICLOVER / equivalent end connections.
SALIENT FEATURES
High reliability
Long Service Life
Negligible Maintenance
High efficiency
Self Priming
Smooth Pulsation Free Flow
Low Noise and Vibration
High Speed Capability
Insensitive to viscosities
High Pressure Capability
Axial flow – No churning , Chewing or shearing
Excellent suction capability
Hydraulic balancing of forces eliminates need for any bearings
Fast, Easy replacement of Parts
Mounting configurations to fit any spaces limitation :-Horizontal, Vertical, Close-Coupled ,Sump
In – Line Construction enables simplified piping arrangement.
ANSI or DIN flanges
Salient Features
High volumetric efficiency
High suction lifts without cavitation
Self priming and ability to handle air vapour and gas in fluids
No axial thrust
Long and trouble free service life with safety in operation and user friendly design
Uniform metered flow
Ability to handle different types of liquids and fluids
Conforms and adheres to API 676, 2nd edition
Dry running capability
Negligible wear over years
Axial smooth steady flow
High speed running
Pulsation free output
Negligible vibrations
Intensive to varying viscosities
Long maintenance free service
Lowest NPSHR
Interchangeable liner
Adaptability of various MOC
Shaft sealing at suction pressures
Axial thrusts completely eliminated
No metal to metal contact between rotors
Positive clearance between rotors
Salient Features
High suction capability
Ease of maintenance without disturbing pipe assembly
Reversible pump
Also transfers abrasive partciles in suspension
Low pulsation, low noise and high precision metering discharge
Smooth quite flow
Excellent self priming
Intensive to viscosities
All metal construction, no contamination
Single Sealing, external bearing
Low noise and pulsation
Reversibility
Bracket/Gear Box mounting allows free expansion/contraction-alignment not affected
Easy maintenance
Slow speeds ensure better pumping and longer life
Reduced maintenance
Advantages of Gear Pumps
Self priming pumps
Steady deliveries without pulsation for clear liquids or with little pulsation but
without vibration and noise
Speed directionally proportional to capacity
Highly suitable to handle viscous clear liquids and temperature up to 250 Deg C
Can be offered with wide variety of material of construction to suit various corrosive media
