The TX series of Signal Isolators and Transducers comprise a wide range of DC and AC Analog signal converters to optically isolated signals with excellent linearity and load driving capability.

The Transducers accept all standard DC or AC signals like Voltage, Current, Resistance, Frequency, Active Power, etc. besides standard temperature sensors like RTD Pt-100, various Thermocouples, etc. Output signals include 4 to 20 mA DC, DC Voltage or Frequency outputs.

The instruments provide Optical and Galvanic Isolation and operate on AC or DC Power Supply, as required.

The Transducers are available in standard DIN-Rail mount execution. Options include Digital Indication, Control Relay outputs, higher load driving capability, Multiple analog outputs, weather-proof/flame-proof/panel mount options, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

Ashe offers a wide range of Blind Controllers which are compact, rugged and reliable indicating instruments designed for accurate measurement and control applications. The instruments are designed to provide on-off control action with a single control output, and are offered in a highly compact, rugged and reliable execution.

The instrument provides LED indications for Power Supply and Relay status on the front panel. The Controller also provides one potential free Relay contact for alarm purposes. Other features include it’s inherent accuracy and immunity to shocks, dust, ambient temperatures, and humidity. Further, the instrument is manufactured using selected high-grade components which guarantee it’s functionality and long operational life.

The instrument is available in standard DIN rail mount enclosure and operates on AC Mains power supply. Other features include protection from high voltage inputs, time delay functions, retransmission, DC power operation, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The Earthing Relay Model ERX-710 is an Intrinsically Safe field-protection device used in Vehicle Static Grounding Systems. It provides the operator with absolute confirmation that the Vehicle is properly earthed and is consequently safe for loading or unloading operations. The instrument thus ensures safety during the loading and handling of volatile chemicals or inflammable liquids at truck, rail and aircraft refueling terminals.

Transport Vehicles, particularly of inflammable, explosive or sensitive material should be necessarily grounded before, as well as during, any loading or unloading operation. One of the primary causes of fire and explosions during such operations is the danger of accidental sparking which may be caused by the generation of a high static-charge on the body surface or chassis of the vehicle. Since the tyres of the vehicle are made of a non-conductive material, there is no path available for the discharge of this developed static-charge. On entry at the loading / unloading terminal, the Tanker is first earthed to the “true-Earth” (Ground) point by means of a Clamp Probe and the static-charge is dissipated. Even a low level residual static-charge could result in minor sparking on contact with any metallic dispensing hose or valve, which could spell disastrous repercussions in a hazardous area. The Earthing Relay ensures that this residual charge is dissipated through an internal shunt route, and then re-checks to ensure ground potential of the truck body.

The instrument has been tested and certified for Intrinsic Safety by The Central Mining Research Institute (CMRI) at Dhanbad for suitability of operation in Gas Groups IIA and IIB. The Earthing Relay Card itself is housed in an explosion-proof enclosure, which is certified for operation in Gas groups II-A and II-B by CMRI Dhanbad and CCOE, Nagpur.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The ASHE Series MAX range of microcontroller based multi-channel Temperature Scanners are compact, rugged and reliable instruments designed for accurate measurement and control applications. The Scanners are fully configurable instruments with options of 2/4/8/16 channel inputs, which can accept Thermocouple (J,K,R,S,T,E) sensors and RTD Pt-100 (three-wire) sensors. Upto four Relay outputs are offered as assignable control outputs, each of which can switch a load of up to 10 Ampere rating. Separate displays are provided for channel number and it’s corresponding temperature. The instrument operates on 85 to 270 V, 50/60 Hz Universal AC power supply and is offered in ¼ DIN standard panel-mount execution. Options include settings for Channel Skip and Scan Time, Analog Retransmission signals, weather-proof/flame-proof/panel mount options, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The ASHE MX range of Digital Flow Rate Indicators, Totalizers, Subtractors and Computers are a versatile range of micro-controller based products offered in a compact, rugged and reliable execution.

The instruments perform functions for flow indication, Integration and control. All related parameters like Flow Rate, Flow Total, Differential (Subtracted) Flow, etc. are indicated on digital displays. Control options by Relays and Analog outputs are also available. The instruments have non-volatile memory.

The Totalizers accept either 4 to 20 mA DC current signal, or a frequency signal from the Flow Transducer or Mass Flow Meter. Relay outputs are offered for control applications, which may be configured for Flow Rate or Totalized value. The instrument is available in DIN standard enclosures and operates on a universal power supply of 90 to 270 V AC mains supply.

Options include external Reset, two-wire configuration, Analog Retransmission signal, Remote Control operation, Batch Control Relay outputs, Weather-proof and Flame-proof executions, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The Series SX range of Switch–Mode Regulated DC Power Supply Units, DC to DC Converters and Battery Chargers are designed using state of the art techniques in power switching, thus providing excellent voltage regulation, high efficiency and low power dissipation. Offered in a wide range of output voltages and power ratings, these power supplies are available in sleek and attractive enclosures in compact and rugged execution and low weight. These power supplies incorporate the latest current mode PWM controllers, UFR diodes, MOSFETs and ferrite–core transformers for providing efficient power control and reliable field performance.

The Series SX SMPS units are designed for continuous full load operation in tough industrial environments, while ensuring the protection of the powered equipment by providing galvanic isolation between input and output, besides complete RFI and EMI filtering. Additional protection such as CVCC logic for overload protection, thermal shut-down, electronic hiccup-mode switching for short circuit protection and forced cooling are also provided as standard features. The power supplies are offered in standard rack–mounting or front / rear-panel or wall mounting execution in DIN Rail mount enclosures.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The ASHE Series AHT range of microcontroller based Digital Humidity and Temperature Controllers are compact, rugged and reliable instruments designed for accurate measurement and control applications.

The Indicators accept the Humidity and Temperature signal from the ASHE HTP-1 Probe as their input and display Relative Humidity and Temperature parameters on a 4-digit seven-segment LED digital display. Up to four relay outputs are available as control options, each of which can switch a load of up to 10 Ampere rating.

The Relays may be assigned for either Temperature, or Relative Humidity, or both.The Controllers are available in individual and combined parameter options and operate on AC or DC power supply, as required. Options include analog retransmission signals, weather-proof / flame-proof executions, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The ASHE range of Process Indicators and Controllers are compact, rugged and reliable indicating instruments designed for accurate measurement and control applications.

The range covers a wide spectrum of products offering indication and control in various formats, some of which are :

 Digital Indication – LCD and LED in various dimensions & executions
 Numeric and Alphanumeric Indicators
 Loop Powered Indicators
 Bar-Graph Indicators
 Battery powered Indicators
 Multiple Relay control outputs
 Various Control actions – like On-Off, PID, Time delay, etc.

The Indicators accept all industrial standard input signals, like 4 to 20 mA DC, AC/DC Voltage, AC/DC Current, Resistance, Strain-gauge, Frequency and all temperature sensors like RTD Pt-100, Thermocouples, etc. The process value is displayed on a 3-1/2, 4 or 4-1/2 digit seven-segment LED or LCD digital display. Up to four relay outputs are available as control options, each of which can switch a load of up to 10 Ampere rating.

These micro-controller based Digital Indicators and Controllers are also offered in several dimensions in panel mounted execution and operate on AC or DC power supply, as required.

Options include analog retransmission signals, DIN rail mount / weather-proof / flame-proof executions, Remote Control operation, etc.

All ASHE range of Digital Indicators and Controllers carry a lifetime warranty.

The Series SPX range of Static Power Switching Units are designed using state of the art techniques in power switching, thus providing instantaneous and bump-less transfer of power to the output load. Offered in several power ratings, these Static AC Power Switching Units are available in sleek and attractive 1U Rack-mount enclosures in compact and rugged execution and low weight.

These Power Switching units incorporate the latest micro-controller sensing combined with current mode PWM controllers, UFR diodes, MOSFETs and ferrite–core transformers for providing efficient power control and reliable field performance. The Series SPX SMPS units are designed for continuous full load operation in tough industrial environments, while ensuring the protection of the powered equipment by providing galvanic isolation between input and output, besides complete RFI and EMI filtering.

Additional features such as a Digital indication of Voltage, Current and Switching Time, combined with an active mimic indicating the status of the power switching are also provided for ease of operation.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The Series SI Signal Simulators are a range of multi-channel Digital and Analog Input/ Output signal generating instruments, which can be used to generate or interrogate Digital and Analog signals in the ranges specified. This range of microcontroller based instruments are designed using state of the art techniques in signal generation and conditioning, thus providing accurate and reliable signal and sensor sources. The instruments find applications in plant commissioning, testing and fault finding and instrument calibration.

Offered in several executions like hand-held, free-standing, panel and field-mounted versions, these instruments provide accurate representation of signals calibrated from certified and traceable sources.

The Series SI Signal Simulators are designed for continuous full load operation in tough industrial environments. Additional features such as a Digital indication of Voltage, Current and other parameters, easy signal selection and settings are also provided for ease of operation. The instruments are also customized to user specifications.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The ASHE Stream Selector Series STL is a range of instruments used in analytical applications to control up to eight streams for process measurements and control.

The Stream Selector instrument has a bright back-lit LCD display module which shows the process status and various parameter settings. The instrument provides up to 24 nos. of potential free and powered relay contacts with LEDs indications on the front panel to indicate the status of various processes.

The instrument provides analog retransmission signal outputs corresponding to each stream, besides providing sample and hold of the outputs. The STL-96 instrument operates in both, the Auto and Manual modes. LED indications are provided for Status of the Streams, indication of Low and High alarms and Status indication. The Stream Selector accepts 4 to 20 mA DC current signal from the Analyzers. The instrument is available in DIN standard enclosures and operates on a universal power supply of 90 to 270 V AC mains supply.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

The GPS based Current Interrupt Timers are a range of On/Off timer with Real Time clock, which is synchronisable by GPS clock. It is a specially designed Timer for carrying out On/Off Cathodic Protection surveys using the current interruption technique. This Timer switches the Contactor in the CP unit to switch the output current from the unit On & Off.

The Timer has a built-in real time clock with advanced Microcontroller based circuitry to provide a wide variety of programming. A dual-line O'LED display and an 8-key keypad for ease of programming and for displaying the information about various modes & time periods is provided on the front panel. The Real Time clock in the timer is synchronized to the GPS clock. This feature enables current interruption surveys using multiple timers with complete synchronization of Start/Stop and On/Off timing cycles.

The Timer has the facility for programming of the On & Off cycle time of DC current interruption from 1 sec to 9999 sec. The Start and Stop of the timing cycle is also programmable and is controlled by the built-in real time clock in the Timer. i.e. the user can automatically start and stop the timer on any day, at any time.

The Timer always works in 'Daytime operation' mode with ‘Automatic Night Sleep’ feature. The Time set in the Timer is for daily operation and it repeats the program cycle every day till the ‘off’ date.

Other features include a back-lit dual-line O'LED display, eight-key membrane keypad, Lithium battery backed Real time clock, Permanent NVRAM storage for program, facility to synchronize timer with GPS clock, Remote Start / Stop & Reset facility, Relay output, high timing accuracy of + 5PPM, power-fail compensation, etc. An RTC based Timer is also available.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

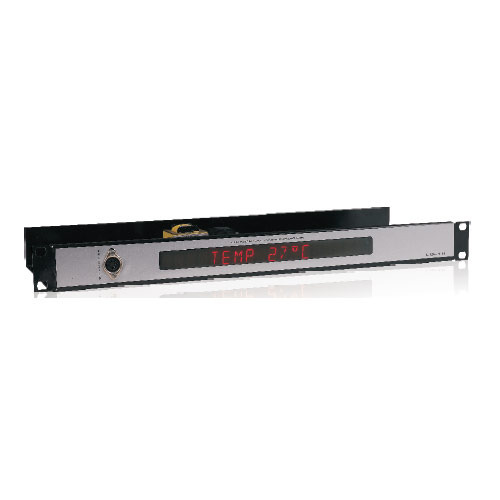

Ashe Controls offers a range of instruments for mounting in standard Panels and Data Server Racks, for applications in Data Centers. The instruments perform a variety of functions, such as :

• Smoke and Fire Monitoring
• Temperature Monitored Fan control
• Multi-zone Temperature and Humidity monitoring and control
• Alphanumeric Annunciator Display
• Panel Access Keypad Locks

These instruments are highly compact and occupy minimal panel space - wiring and mounting of these instruments are unobtrusive to critical equipment mounted in the panel. They perform various functions like monitoring and control of critical parameters, power saving, fire prevention, panel access, etc. The instruments operate on AC Mains power and are available in easy-mounting kit form. All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

Ashe offers a wide range of process measurement and control instruments in Flame-proof / Explosion-proof execution for operation in hazardous area applications. The instruments are designed for use in industries where high degree of vibration, inclement weather and corrosive atmospheres prevail.

The electronics is mounted inside low-copper, epoxy coated die-cast Aluminum enclosures, which have a Safety Glass window for process and control indication. For more aggressive environments, Stainless Steel SS-316 versions are also offered. Instruments such as Digital Loop Powered Indicators, Digital process Indicators for all applications, On/Off Controllers, Flow Totalizers and Batch Controllers, Temperature Transmitters, Earthing Relays, etc., are offered in this execution.

The enclosures are compact, rugged and aesthetically designed. They are offered in attractive colors for Aluminum enclosures and Natural Silver color for Stainless Steel SS-316 enclosures. Complete mounting accessories are offered for field or 2” pipe mounting. The enclosures are certified for use in Gas Groups IIA and IIB and Zone 1 and 2 atmosphere by CIMFR, Dhanbad for Flame-proof applications as per IS:2148-1981 and Weather-proof applications for IP-65 protection as per IS:13947(Part-1):1993.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

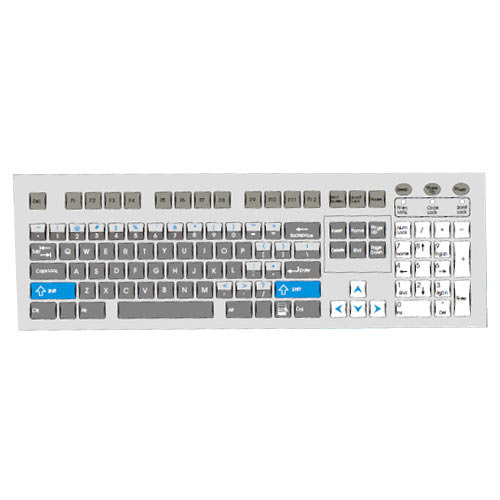

Ashe offers a wide range of process control Keyboards for various industrial applications. These IP65 grade Membrane Keyboards ensure protection from high temperatures, dust, humidity, moisture, vibrations, corrosive substances and mechanical shocks, so as to ensure against damage to the electronic circuitry and the data Keys.

Besides standard PC compatible Keyboards, Ashe Controls undertakes the custom design and manufacture of application-specific Membrane Keyboards for interface to PCs or dedicated PLCs and DCS systems.

The PC-compatible Membrane Keyboards are basically structured around the standard 107-key keyboard and can be plugged into any PS-2 or USB socket of a PC for normal operations.

The application-specific Keyboards are designed specifically for operation with a PLC or PC based system software. Inputs required to design these keyboards are basically the Key layout, the Key Codes and the communication protocol.

A Membrane Switchpad of polycarbonate material is used for operator interface. The desired key legends are printed on the overlay, while transparent windows are provided for indicating LEDs or digital displays. Macros can be assigned to specific keys, while a range of Soft keys can be provided for on-site assignments of keys. The Keyboard can be inhibited using a key-lock switch. Other options include LEDs for key indications, electronic Buzzers for key-press feedback, flush-mounting executions, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

Ashe offers a wide range of multi-channel Fuse Failure monitoring instruments for various industrial applications. IP65 grade These compact, panel mounted instruments are designed to indicate the failure of a Fuse (Fuse blown condition) in power lines. Most panels have multiple fuses in power lines at various locations.

This instrument is used to indicate the fuse blown condition at any location. Both six-channel and eight channel versions are offered. The instrument provides LED indications of each fuse status on the front panel. The Fuse Failure Relay also provides one potential free Relay contact for alarm purposes. An external Lamp indication or Hooter can be connected to the Relay contact for remote annunciation purposes.

The instrument is available in DIN standard panel mount enclosure and operates on AC Mains power supply. Other features include protection from high voltage inputs, optical isolation from alarm section, single phase and three-phase operation, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

Ashe offers a wide range of Temperature Sensors like Thermocouples and RTD Pt-100 for various industrial applications. The Sensors are available in high grade Stainless Steel SS-316 with various options in mounting based on application. Thermocouple Sensors are offered with Mineral Insulated sheaths and MgO filling in types J,K,R,S,T,E, in Simplex and Duplex configurations. RTDs are also available in Simplex or Duplex elements, with various protection sheaths. The Sensors have options of a cast aluminum terminal head, or direct cable assembly.

The Sensors are manufactured using high grade elements for better accuracy, stability and reliability. A high degree of protection against dust, temperature fluctuations, humidity variations and vibration are offered by the rugged construction. Options of built-in Temperature Transmitters are also offered. The Sensors used in conjunction with ASHE range of Indicators, Controllers and Transmitters provide reliable process measurement, transmission and signal conditioning in any temperature application.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.

Ashe offers a range of microcontroller based Motion Controllers for Mobile Storage System applications. These Controllers provide access and movement control of storage systems, where individual carriage programming is provided to ensure high degree of system flexibility. Expansion of additional carriages can be easily integrated into the system.

A membrane keypad allows the user to set the programming parameters and also enter the access codes. An alphanumeric back-lit display shows the menu for full functionality, besides providing the operator with the status of each carriage. Other features include remote operation, Auto/Manual movement programs, Nesting after a pre-determined time, speed monitoring and instant remedial action in case of abnormality, infra red obstruction sensing, aisle lighting, etc.

All ASHE instruments carry a lifetime warranty against defects in components and workmanship.
