The CSCAN 485 is a RS 485 to RS 232C converter and vice-versa. The conversion is bi-directional. Both ports are optically isolated. We can give supply as 230VAC/110VAC or DC version 24V is available. RS 485 to RS 232C converter is used in application like interfacing field instrumentation with SCADA/PLC/DCS.

The CSCANRPT485 is a RS485 / RS422 to RS485 / RS422 Repeater operating on 230 VAC or 24VDC supply. The conversion is bi-directional. Both ports are optically isolated. RS 485 Repeater is used in application like interfacing field instrumentation with SCADA/PLC/DCS. RS 485 Repeater is used in Automation and Project Industry.

The CSCANISO-232 is a RS232C to RS232C ISOLATOR operating on DC supply. The conversion is bi-directional. Both ports are optically isolated. RS232C to RS232C ISOLATOR is used in application like interfacing field instrumentation with SCADA/PLC/DCS. RS232C to RS232C ISOLATOR is used in Automation and Project Industry.

The CSCAN – ETHERNET is a RS 485 / RS 232C (RTU side) to Ethernet (PC LAN side)converter. The conversion is both ways. Both ports are optically isolated. Serial to Ethernet Converter is also used in application like interfacing field instrumentation with SCADA/PLC/DCS.

The CSCAN-485-USB is a RS 485 to USB bidirectional converter. Now-a-days most desktop computers and Laptops provide USB port instead of RS232 COM port. The CSCAN-485- USB provides isolation between USB port, RS485 port and Supply. USB to RS485 Converter is designed for Industrial application and performs reliably as compared to cheap converters available in market.

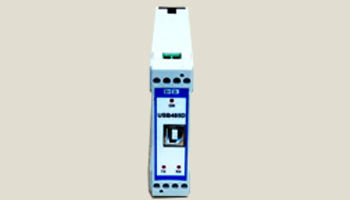

The USB-485-DC is a USB to RS 485 converter. USB-485-DC is having +5VDC supply from PC USB port through 1.5 mtr.USB cable. Now-a-days most desktop computers and Laptops provide USB port instead of RS232 COM port. The USB-485-DC provides isolation between USB port, RS485 port and Supply. USB to RS485 Converter is designed for Industrial application and performs reliably as compared to cheap converters available in market.

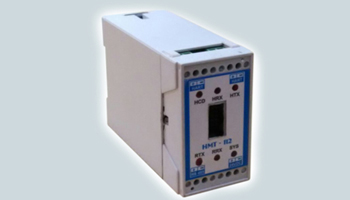

HMT-112, HART to MODBUS Converter is designed to accept HART inputs from maximum 15 slave units and convert standard variables into fixed MODBUS address registers. This is useful to accept / read exact values available for Flow, Pressure, Temperature transmitters in digital form in the control room eliminating errors in Analog input acquisition and process systems. User selectable baud rate for MODBUS Master on DIP switch is provided. LED Indications for master and slave operations for easy diagnosis.

HMI, HART to MODBUS Indicator is designed to accept HART signals from field instruments in multi drop mode and convert standard variables into fixed MODBUS address registers. This is useful to accept / read exact values available for Flow, Pressure, Temperature transmitters in digital form in the control room eliminating errors in Analog input acquisition and process systems. User friendly messages to understand status of the instrument and actual values of HART slaves connected on the loop.The engineering units are acquired from the HART slaves hence reduced efforts for programming. User selectable baud rate for MODBUS Master on DIP switch. Isolated HART and RS485 port is available.

The TRANSLATOR is a Ethernet (PC LAN side Master ) to RS232 or RS485 (RTU side - Slave) protocol converter converts MODBUS TCP-IP protocol to MODBUS RTU protocol or visa-versa. LED Indications for master and slave operations for easy diagnosis are provided on front panel.
